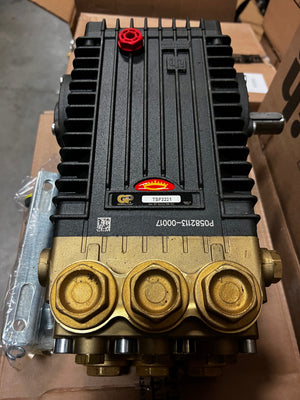

General Pump TSF 2221 Bare Pump

Features include:

• Oversized roller bearings
• Fully anodized crankcase
• Innovative new seal design extends seal life
• New plunger design improves thermal shock resistance
• New valve cap improves hydrostatic performance

Specifications:

• Horsepower: 21.0 EBHP
• Maximum Volume: 10.2 GPM
• Maximum Discharge Pressure: 3000 PSI
• Maximum Pump Speed: 1750 RPM
• Maximum Inlet Pressure: 125 PSI
• Maximum Inlet Vacuum: 9 ft. water (7.9 in. Hg)
• Plunger Bore: .866 in. / 22 mm
• Plunger Stroke: .826 in / 21 mm
• Crankcase Oil Capacity: 40.6 oz.
• Maximum Fluid Temperature: 165 F
• Inlet Port Thread: 3/4”-14 BSP-F
• Discharge Port Thread: 3/8”-19 BSP-F
• Shaft Diameter: .945 in. / 24 mm
• Weight: 68 lbs.
• Dimensions: 14.94” x 9.78” x 6.99”
