TeeJet Flat Spray Tips for Sealer & Chemical Application

Apply sealers, chemicals, and coatings evenly with professional TeeJet flat spray tips designed for uniform coverage on flat surfaces. Our selection includes brass and stainless steel even flat spray tips in multiple flow rates for sealer spray systems, chemical application, and coating equipment.

TeeJet Brass Flat Spray Tips

• 6505 Brass Spray Tip: TeeJet brass flat spray tip for sealer and chemical application
• 6510 Brass Spray Tip: Brass spray tip ideal for use with sealer spray systems
• 6515 Brass Spray Tip: TeeJet brass flat spray tip for coating applications
• 8006E Even Flat Spray Tip: Brass even flat spray tip (Part No. TP8006E) for uniform coverage
• Cost-Effective: Brass construction provides excellent value for sealer and coating applications

TeeJet Stainless Steel Flat Spray Tips

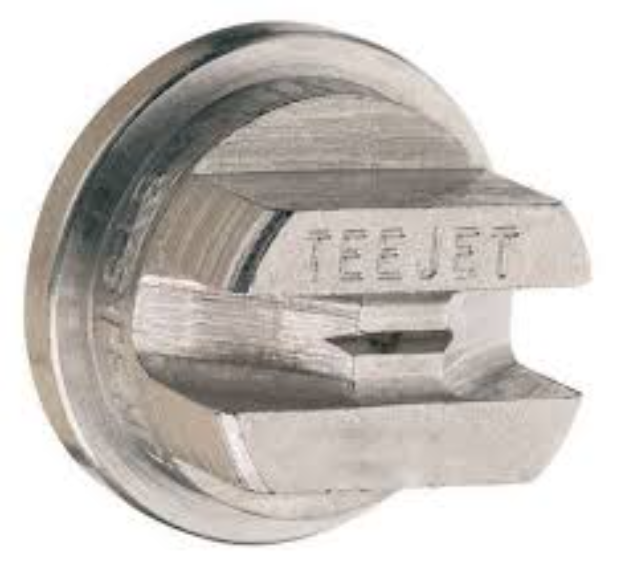

• TP4006E-SS Even Flat Spray Tip: Stainless steel even flat spray tip for extended wear life
• Corrosion Resistant: Stainless steel construction resists chemical corrosion
• Long Service Life: Stainless steel tips outlast brass in abrasive or corrosive applications

Why Use TeeJet Flat Spray Tips?

• Even Coverage: Flat spray pattern delivers uniform application across flat surfaces
• Professional Results: Consistent spray pattern eliminates streaks and uneven coverage
• Sealer Application: Ideal for applying paver sealers, concrete sealers, and protective coatings
• Chemical Spraying: Suitable for applying herbicides, pesticides, and cleaning chemicals
• Industry Standard: TeeJet tips are the professional standard for agricultural and industrial spraying

Common TeeJet Flat Spray Tip Applications

• Paver Sealing: Apply paver sealer evenly to driveways, patios, and walkways
• Concrete Sealing: Seal concrete surfaces with uniform coverage
• Deck Staining: Apply deck stains and sealers to wood surfaces
• Chemical Application: Spray herbicides, pesticides, and cleaning chemicals
• Coating Systems: Apply protective coatings and finishes to various surfaces

Understanding TeeJet Tip Numbers

• First Digits (65, 80, 40): Indicate spray angle in degrees (65°, 80°, 40°)
• Last Digits (05, 10, 15, 06): Indicate flow rate at 40 PSI (0.5, 1.0, 1.5, 0.6 GPM)
• E Designation: Even flat spray pattern for uniform coverage
• SS Designation: Stainless steel construction for extended wear

Choosing the Right Flat Spray Tip

• Spray Angle: Wider angles (80°) cover more area, narrower angles (40°) provide more concentrated spray
• Flow Rate: Match tip flow rate to your pump capacity and desired application rate
• Material: Brass for general use, stainless steel for abrasive or corrosive chemicals
• Application Type: Even flat tips provide uniform coverage for sealers and coatings

Maintenance & Replacement

• Regular Inspection: Check tips for wear, clogging, or damage before each use
• Clean After Use: Flush tips with clean water or solvent after chemical applications
• Replace When Worn: Worn tips produce uneven spray patterns and should be replaced
• Stock Spares: Keep replacement tips on hand to avoid job delays

Whether you're sealing pavers, applying concrete coatings, or spraying chemicals, TeeJet flat spray tips deliver the even coverage and professional results sealing and coating applications demand. Brass tips provide cost-effective performance for general sealer application, while stainless steel tips offer extended wear life in demanding applications. Every TeeJet tip is precision-manufactured to deliver consistent spray patterns and reliable performance in professional sealer spray systems and chemical application equipment.
