Variable Nozzles

Variable Nozzles for Pressure Washers

Simplify your pressure washing operations with MTM Hi-Lo variable nozzles that combine adjustable pressure and fan pattern control in a single nozzle. Switch between high-pressure cleaning and low-pressure chemical application without changing tips, making these versatile nozzles essential for efficient pressure washing and soft wash operations.

MTM Hi-Lo Variable Nozzle Models

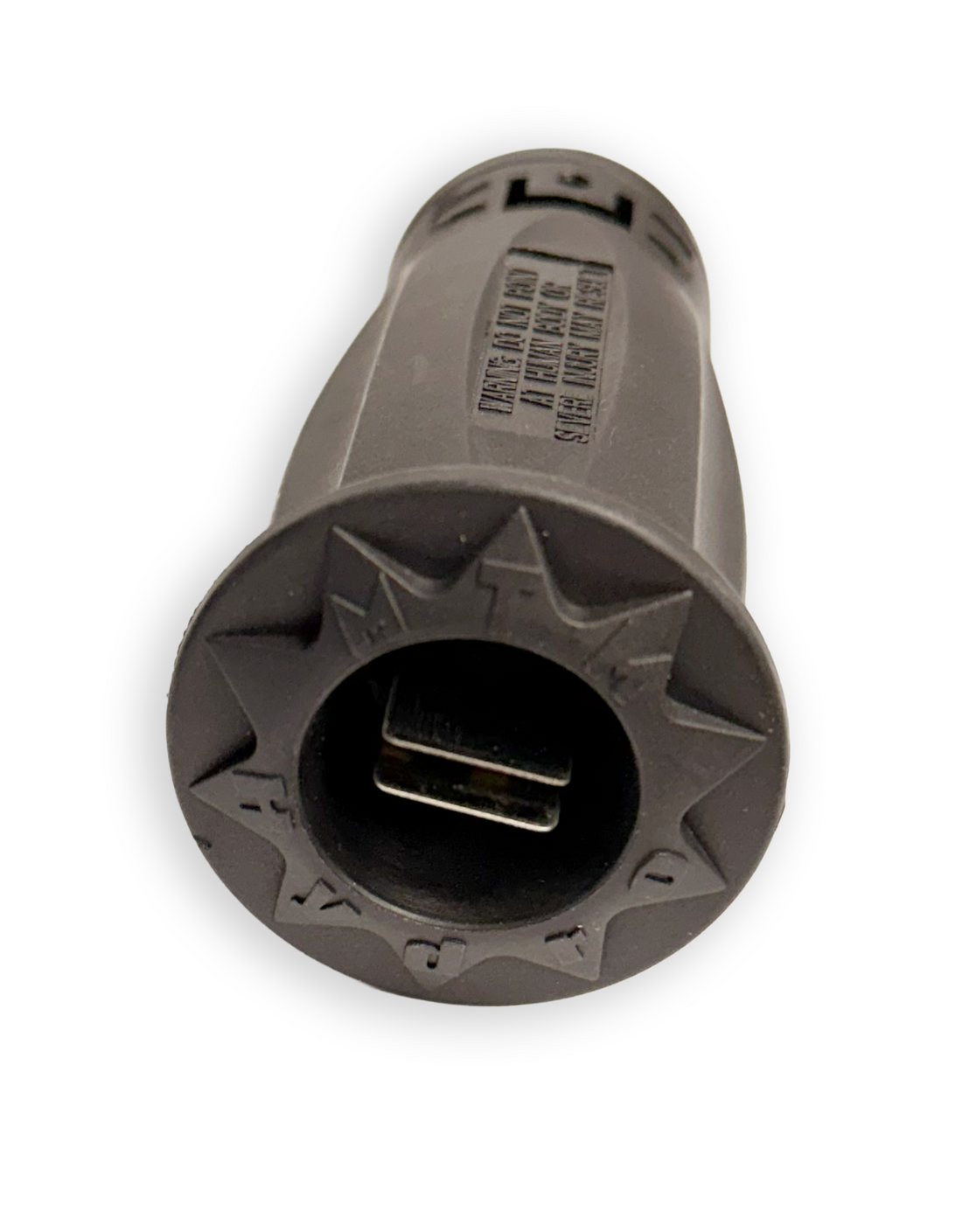

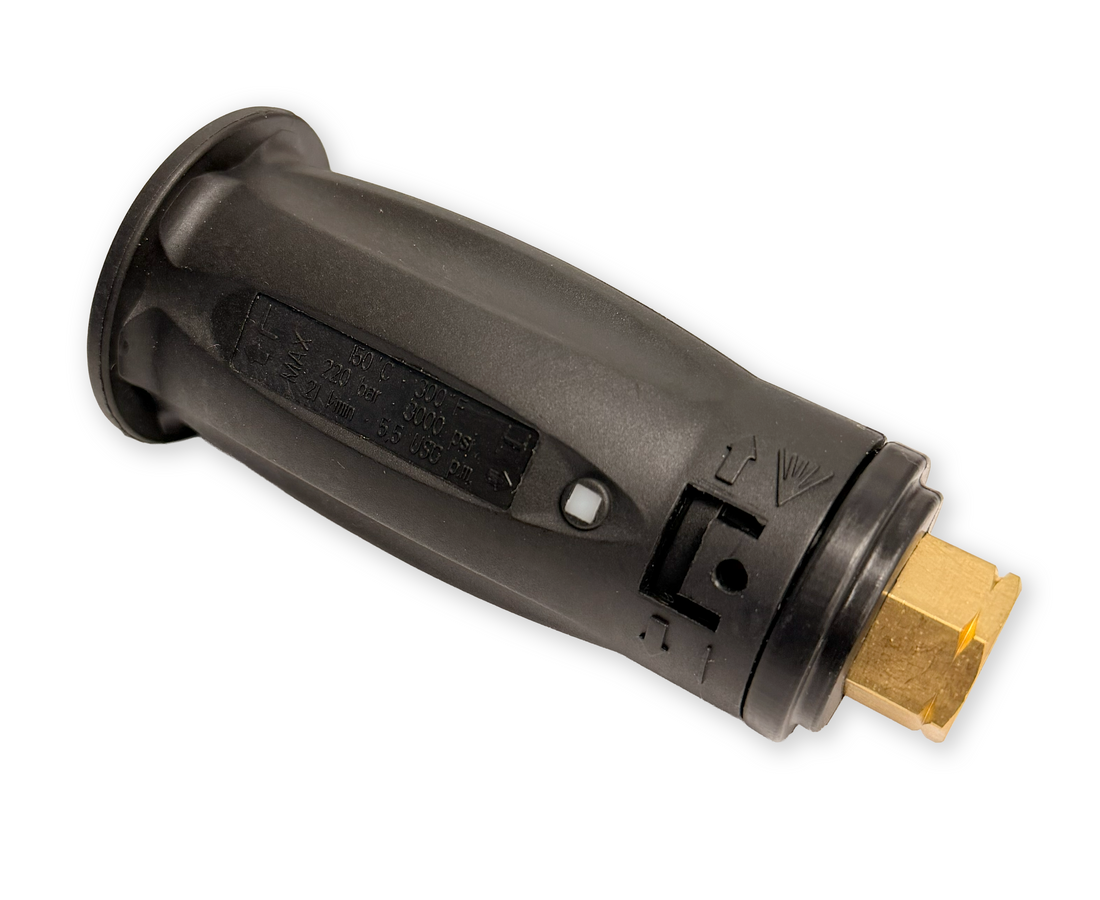

  • 3.0 (1.1mm) White Dot: Smallest orifice for lower flow applications, 8 GPM max flow at 3000 PSI
  • 3.5 (1.2mm) Yellow Dot: Medium orifice for standard pressure washing, 8 GPM max flow at 3000 PSI
  • 4.0/4.5 (1.3mm) Orange Dot: Larger orifice for higher flow machines, 8 GPM max flow at 3000 PSI
  • Hot Water Compatible: All models rated for 300°F maximum temperature
  • 1/4" FPT Inlet: Standard thread connection for pressure washer wands and guns

Dual Adjustment Features

  • Pressure Adjustment: Push and pull cover to switch between high pressure (cleaning) and low pressure (chemical application)
  • Fan Pattern Adjustment: Twist cover to adjust fan pattern up to 80 degrees for different coverage widths
  • High Pressure Mode: Full pressure for cleaning concrete, siding, and tough surfaces
  • Low Pressure Mode: Reduced pressure for chemical injection and soft washing applications

Why Use Variable Nozzles?

  • Eliminate Tip Changes: Switch between cleaning and chemical application without changing nozzles
  • Increased Productivity: Spend less time swapping tips and more time cleaning
  • Versatile Operation: One nozzle handles both high-pressure cleaning and low-pressure chemical delivery
  • Adjustable Coverage: Dial in the perfect fan pattern for each surface and application
  • Simplified Equipment: Reduce the number of nozzles you need to carry

Common Variable Nozzle Applications

  • House Washing: Switch from low-pressure soap application to high-pressure rinsing instantly
  • Vehicle Cleaning: Apply soap at low pressure, rinse at high pressure without changing tips
  • Deck Cleaning: Adjust pressure and fan pattern for different wood types and conditions
  • Concrete Cleaning: Use high pressure for cleaning, low pressure for applying degreasers
  • Multi-Surface Jobs: Adapt quickly to different surfaces and cleaning requirements

Choosing the Right Orifice Size

  • 3.0 (1.1mm) White Dot: Best for machines under 3 GPM or when maximum pressure is needed
  • 3.5 (1.2mm) Yellow Dot: Best for 3-4 GPM machines and general pressure washing
  • 4.0/4.5 (1.3mm) Orange Dot: Best for 4-5 GPM machines and higher flow applications
  • Match Your Machine: Select orifice size based on your pressure washer's GPM rating

MTM Hi-Lo Variable Nozzle Specifications

  • Maximum Flow: 8 GPM for all models
  • Maximum Pressure: 3000 PSI for all models
  • Maximum Temperature: 300°F for hot water applications
  • Fan Pattern Range: Adjustable up to 80 degrees
  • Connection: 1/4" FPT inlet port for standard wand mounting

Whether you're washing houses, cleaning vehicles, or tackling multi-surface jobs, MTM Hi-Lo variable nozzles deliver the versatility and convenience professionals demand. With push-pull pressure adjustment and twist fan pattern control, these nozzles eliminate the need to carry and swap multiple tips throughout the day. Available in three orifice sizes to match your pressure washer's flow rate, every MTM Hi-Lo variable nozzle is built for reliable performance in both high-pressure cleaning and low-pressure chemical applications, with hot water compatibility up to 300°F.
