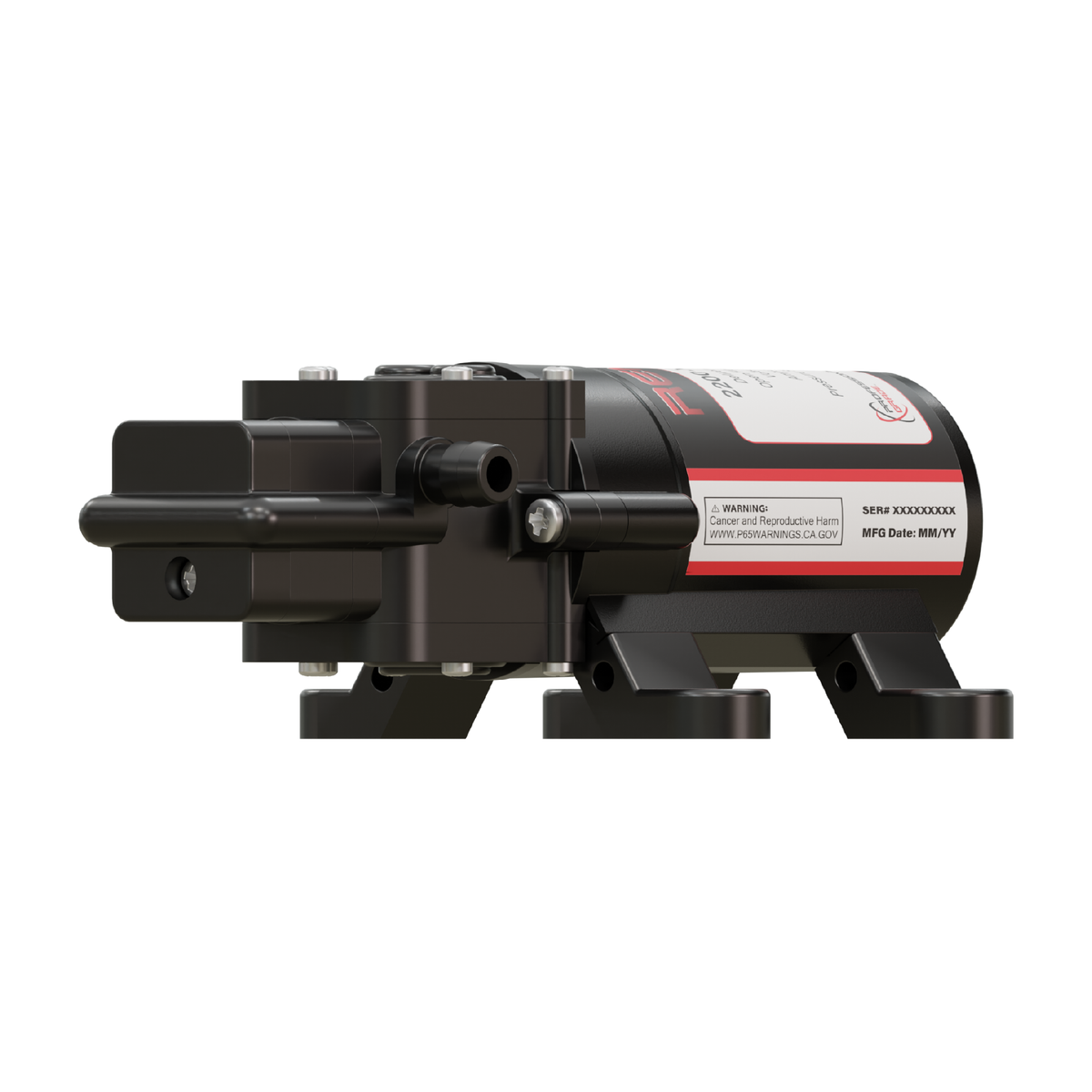

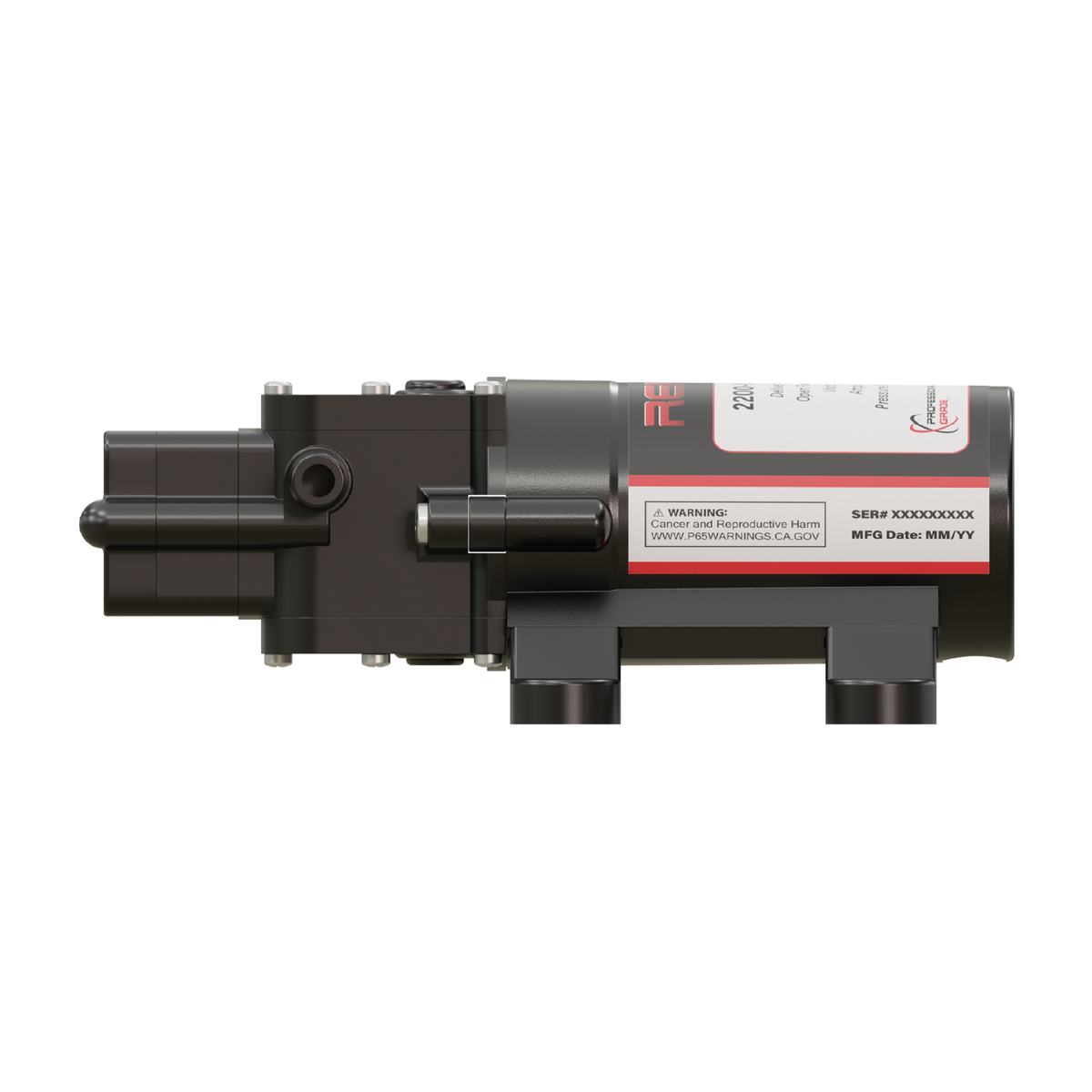

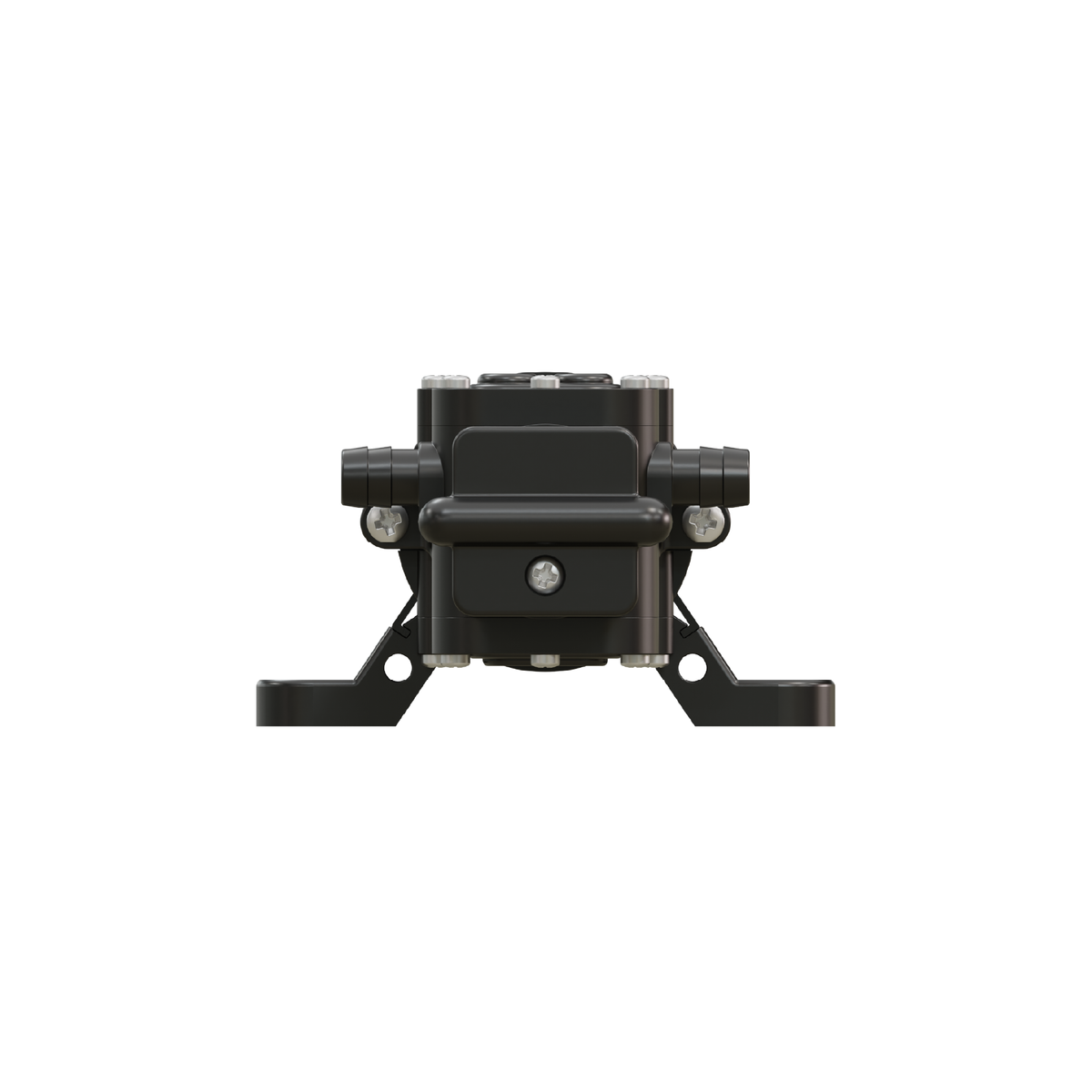

Remco 1.0 GPM Demand Pump | 2240-1B1-10E

The Remco 1.0 GPM Demand Pump (2240-1B1-10E) is a compact, reliable solution built for spot spraying and low-flow fluid transfer applications. Delivering 1.0 GPM and 40 PSI, this 12V diaphragm pump provides consistent pressure and controlled output, making it ideal for small sprayers, ATV setups, and precision agricultural use.

As part of Remco’s proven Economy Plus 2200 Series, this pump is engineered with a fully integrated design that enhances durability while simplifying maintenance and installation. Despite its compact size and lightweight build (under 2 lbs), it is field-proven and capable of handling demanding environments.

The demand-style operation automatically turns the pump on and off based on system pressure, improving efficiency and extending pump life. A two-chamber diaphragm system ensures smooth, consistent flow, while self-priming capability up to 4 feet and dry-run protection provide dependable performance in real-world conditions.

With easy installation using standard mounting patterns and 3/8” hose barb ports, the Remco 2240-1B1-10E is a versatile, cost-effective choice for reliable spraying and transfer tasks.

Features:

• 1.0 GPM, 40 PSI, On Demand, 12 VDC, 3/8" Hose Barb Ports
• Capable of being run dry
• Self priming up to 4' vertically
• 6" 18 AWG wire leads with SAE 2-pin connector
• Universal mounting pattern
• Compact and efficient design

• Compatible with most common agricultural spray chemicals like herbicides, fertilizers, and insecticides

• 15 years of field proven quality
• Professional Grade Quality
• Compact and Efficient Design
• Low Heat and Power Consumption
• Quiet Operation

Pump:

• Fluid Ports: 3/8” hose barb
• Demand
• Preusser: 60 PSI (4.14 BAR)
• Valves: Santoprene
• Priming Capability = 4ft (1.2m) Suction lift
• Max Pressure = 40 PSI (2.8 BAR)
• Weight = 1.5 lbs (0.7 kg)
• Standard Box Quantity = 30 pumps
• Standard Pallet Quantity = 900 pump
• Fluid Ports: 3/8" Hose Barb
• Voltage: 12 VDC

Technical Information:

• 18 AWG - 6” 2-Pin Mold / Custom Connection
• 4ft (1.2M) Priming Capability
• Intermittent Duty Cycle
• Dry Run Capability
• 140°F (60°C) Max Liquid Temperature
• 180°F (82°C) Max Shell Temperature

Typical Applications:

• Ag and Industrial Chemical Spraying
• Automotive Fluid Exchange
• Food and Beverage Services
• Ice Removal

 Note: Filter & Fittings sold separately

Frequently Asked Questions

What is this pump used for?
This pump is designed for spot spraying, small sprayers, and low-flow fluid transfer applications.

What is a demand pump and how does it work?
A demand pump automatically turns on and off based on system pressure, supplying fluid only when needed.

Is this pump good for ATV sprayers?
Yes, its compact size and 1.0 GPM output make it ideal for ATV and small sprayer systems.

Can this pump run dry?
Yes, the diaphragm design allows it to run dry without damage, improving reliability.

Is this pump easy to install?
Yes, it features standard mounting and 3/8” hose barb ports for quick and simple installation.
