EV22A

EV22A

$2,340.00 USD
$2,340.00 USD $2,899.87 USD
Sale Sold out
Shipping calculated at checkout.

Low stock: 1 left

ⓘ Product Variation Notice
Product images, descriptions, specifications, components, colors, packaging, and other product details are provided for reference and may change without notice due to manufacturer updates, revisions, or substitutions. The product received may differ from the information or images displayed on this page. For more information, see our Terms of Service.

FEATURES
• “HR” coating on manifold 30 times more resistance to salt water mist
from road spray
• Stainless Steel manifold on EV16SN, EV18SN & EV25SN

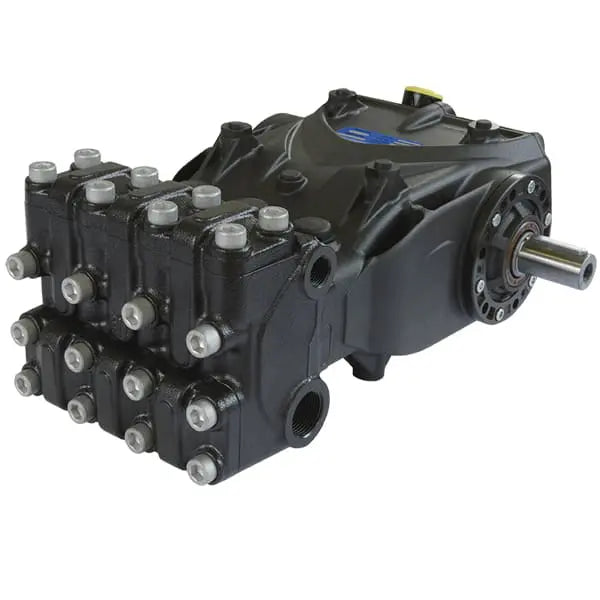

• Triplex Plunger Pump, available in 5 plunger diameters
• Patent-pending, symmetrical power end design featuring
top and bottom mounting holes allowing for easy left to right
shaft conversion
• Low-high pressure packing design with integrated cooling system,
no greasing required
•     High volumetric efficiency suction/delivery valves
featuring new spherical design of sealing areas
• Splash lubrication
• SAE-B hydraulic drive available with hollow splined shaft or bell housing
MATERIALS
• High resistance light alloy die cast aluminum crankcase
• GS600 cast iron manifold,HR treated
• Taper roller bearings
• Special anti-friction, forged, light alloy connecting rods
• Forged alloy steel crankshaft, hardened, tempered and nitrited
• Solid ceramic plungers
• Stainless steel valves

COMMON SPECIFICATIONS
• Maximum Inlet Pressure: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45 PSI
• Maximum Fluid Temperature: . . . . . . . . . . . . . . . . . . . . . . . . . . . . *140° F
• Inlet Port Thread: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1” NPT-F
• Discharge Port Thread: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1/2” NPT-F
• Shaft Diameter: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.102”/28 mm
• Stroke: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.379”/35 mm
• Pump Dimensions: . . . . . . . . . . . . . . . . . . . . . . . . . . . 17.1” x 12.1” x 6.8”
• Crankcase Oil Capacity: . . . . . . . . . . . . . . . . . . . . . . . 60.7 oz. (1.8 liters)
 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . (use GP Series 220 Oil)
• Shipping Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65 lbs./29.5 kg
*Please consult technical guide or GP Sales Representative for
Temperature/Inlet Pressure Information.
