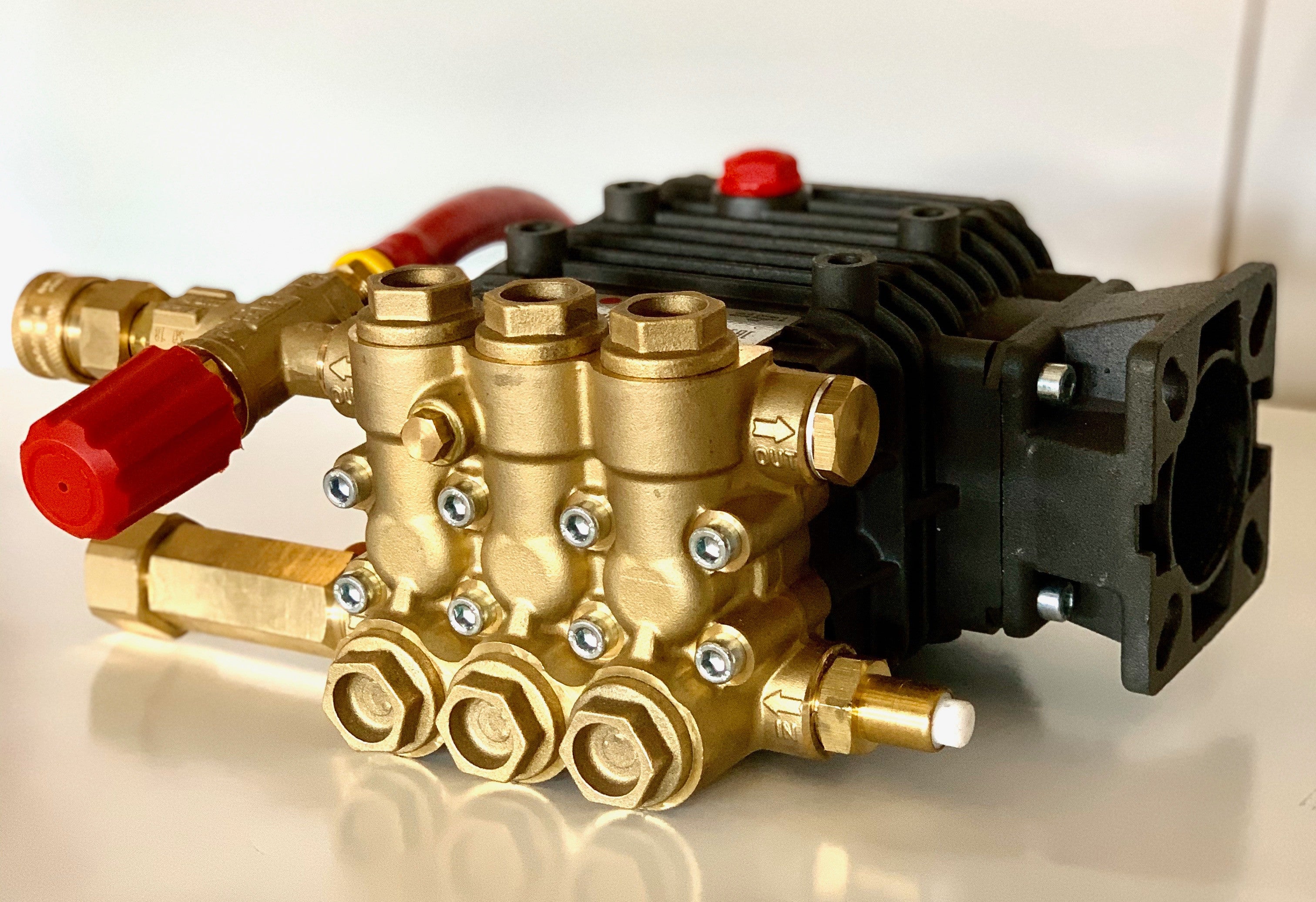

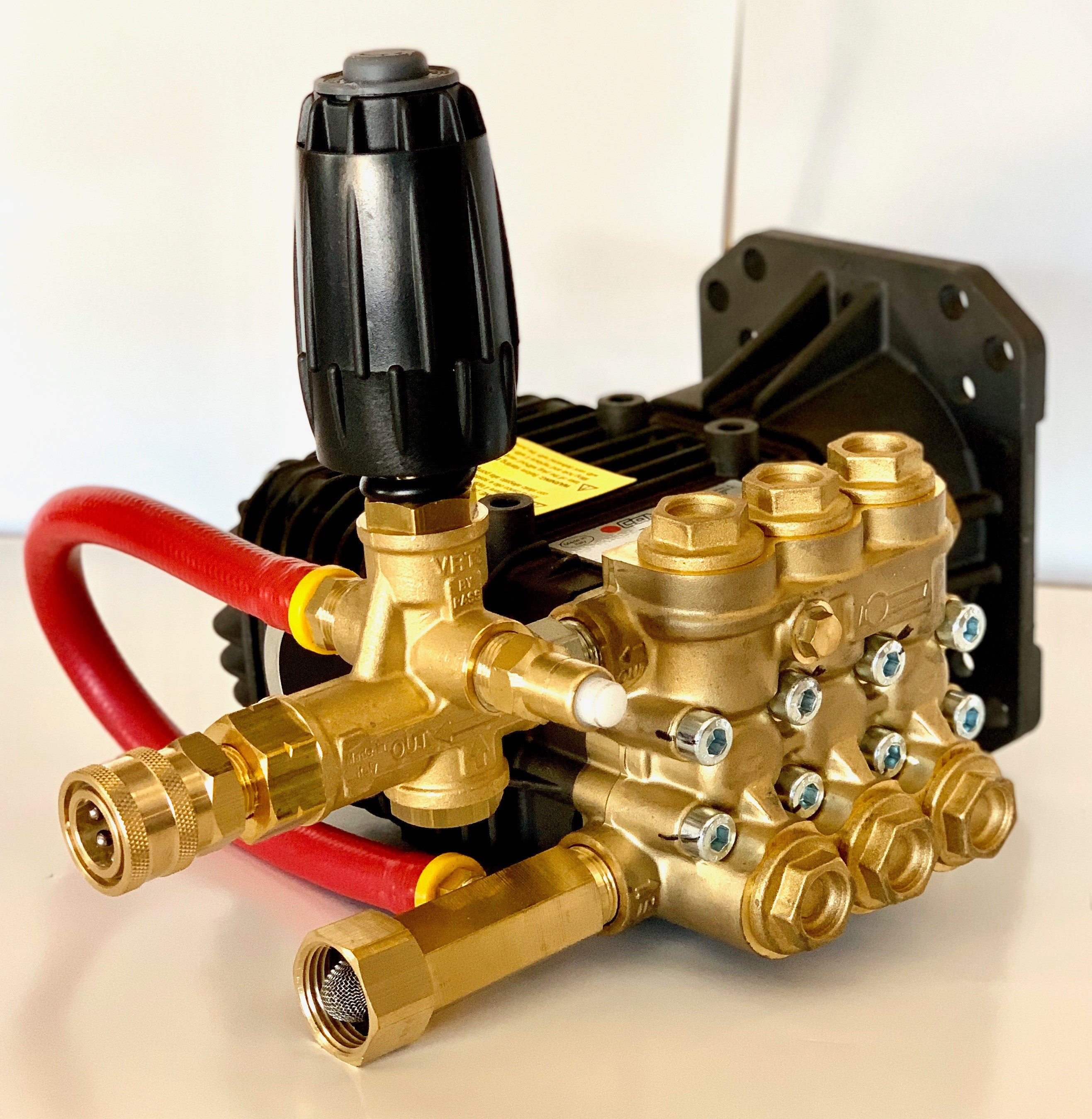

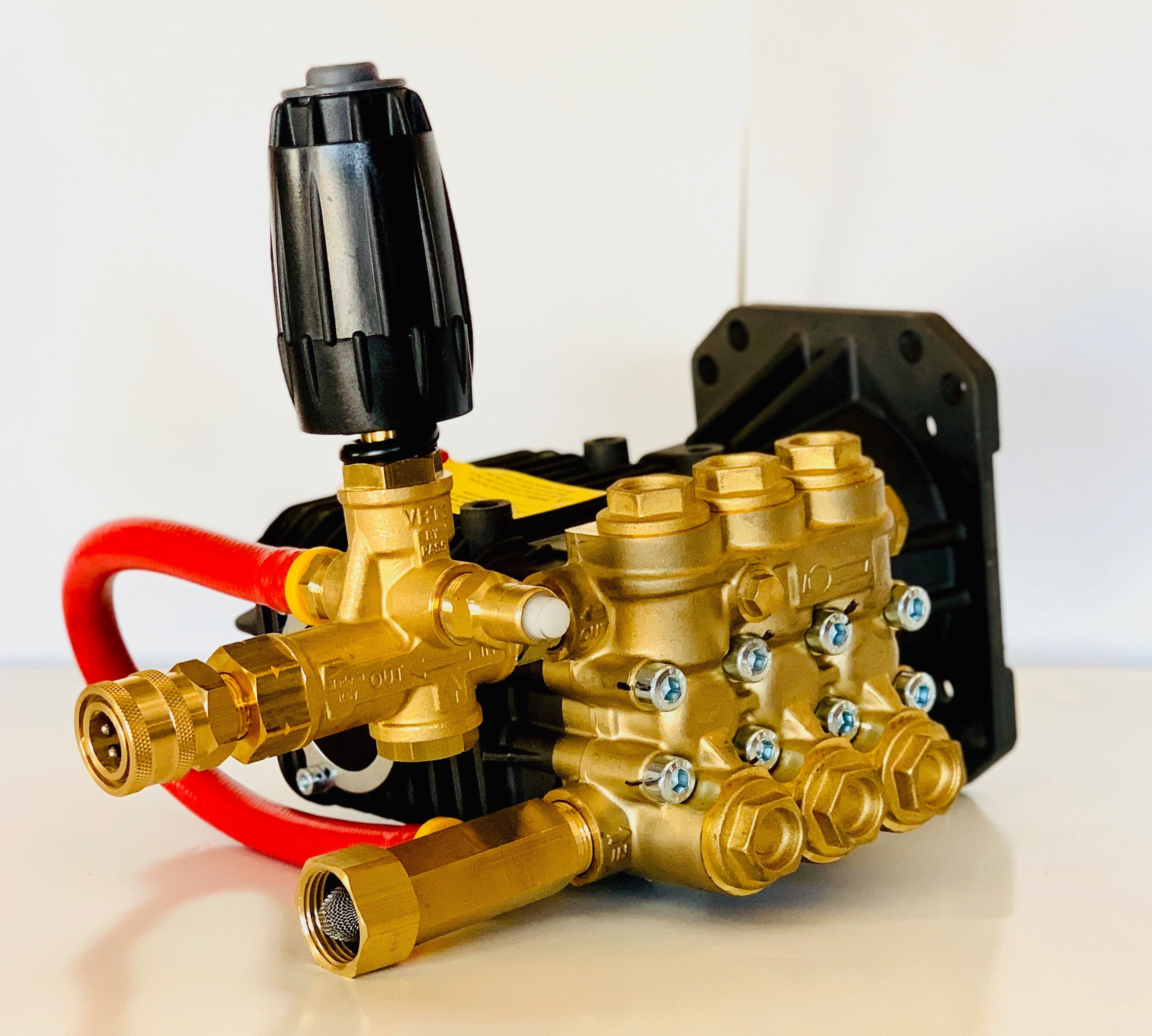

LWD3025 3GPM 2500PSI Fully Plumbed Comet Pump

LWD3025G 3GPM 2500PSI 3/4" GAS FLANGE

FEATURES

• Reversible crankshaft for easy righ or left hand mounting
• Forged bronze connecting rods with lifetime warranty
• Hardened stainless steel piston guides
• High efficiency stainless steel check valves
• Abrasion proof, heat resistant, industrial ceramic plungers
• High quality buna-textile double sealing v-packings
• High quality oversized bearings
• Design for optimal operating temperature
• Die-cast anodized aluminum chrankshaft fin
• Includes Thermal Relief Valve, VR54 Unloader and Fittings PMR (Pump Made Ready)

SPECIFICATIONS:

• Maximum Flow: 3.0 GPM
• Maximum Pressure: 2500 PSI
• Maximum Pump Speed: 3400 RPM
• Minimum Horsepower Requirements: 7.5 hp for gas engines
• Inlet: 1/2"FPT
• Discharge: 3/8"FPT
• Shaft Diameter: 3/4" hollow with gas flange
• Crankcase Capacity: 9.87 oz. use SAE 30 ND oil
• Weight: 13.4 lbs.

Lubrication: fill crankcase with SAE 30 Non Detergent oil per pump specifications. Change oil after 50 hour break-in period, then in 100 hour intervals thereafter.
