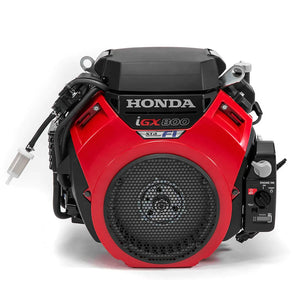

IGX800 Honda Engine w/ 26Amp Charging System Bare Motor

IGX800 Honda Engine w/ 26Amp Charging System Bare Motor

GX800IRHTAPP

iGX800 Specs:

• Engine Type: Air-cooled 4-stroke OHV
• Shaft: 1-1/8" Keyed
• Bore x Stroke: 83 X 72 mm
• Displacement: 779 cm3
• Net Power Output: 24.9 hp (18.6 kW) @ 3,600 rpm
• Net Torque: 40.2 lbs ft (54.5 Nm) @ 2,500 rpm
• PTO Shaft Rotation: Counterclockwise (from PTO shaft side)
• Compression Ratio: 9.1:1
• Charge coil options: 17A, 26A
• Fuel system: Electronic fuel injection
• Throttle control: Drive-By-Wire
• Ignition System: Full transistorized
• Starting System: Electric
• Lubrication System: Full pressure
• Governor System: Electronic system (Self tuning regulator)
• Air cleaner: Dual element panel or canister style
• Oil Capacity: 2.1 US qt (2.0l)
• Fuel: Unleaded 86 octane or higher
• Dry Weight: 103.4 lb (44 kg)
• Warranty: 3 year commercial warranty (limited to manufacturer defects)

**Please note: Gas Tank and Muffler are sold separately. For muffler most common is VHLM6.**


FUEL EFFICIENT OPERATION

• Electronic Fuel Injection (EFI)

SMOOTH PERFORMANCE

• Integrated cylinder and head
• Racing inspired forged steel connecting rods and rocker arms
• Insert style rod bearings

PROVEN RELIABILITY

• High capacity pump provides consistent oil delivery
• Dual element (foam pre-cleaner and paper filter element)
• High capacity charge systems (17A or 26A)
• Premium regulator/rectifier
• Oil cooler helps slow oil degradation, and maximizing engine life
• SAE J1939 CAN Bus communication functionality
• 3-Year Limited Warranty
• Oil Alert
• Rev limiter protects against damage caused by over-revving

HIGH OUTPUT PERFORMANCE

• Hemispherical combustion chamber delivers rapid combustion
• 9.1:1 compression ratio generates high power output without the need for premium fuel
• Forged steel crankshaft
• Pressure fed crankshaft bearings
• STR Governor ( Self Tuning Regulator)

EXCEPTIONALLY QUIET

• High capacity 36 blade cooling fan
• Aluminum push rods with steel tips - lighter weight, lower vibration, and quieter operation

EASY TO USE AND MAINTAIN

• LED diagnostic indicator
• Link with tablet or PC for easy diagnosis
• Drive-By-Wire control
• Automotive-type spin-on oil filter
• Full Auto Choke for ease of use
• Electronically controlled RPM programming for a variety of applications
• Conveniently located controls, with several configurations available based on user preference
