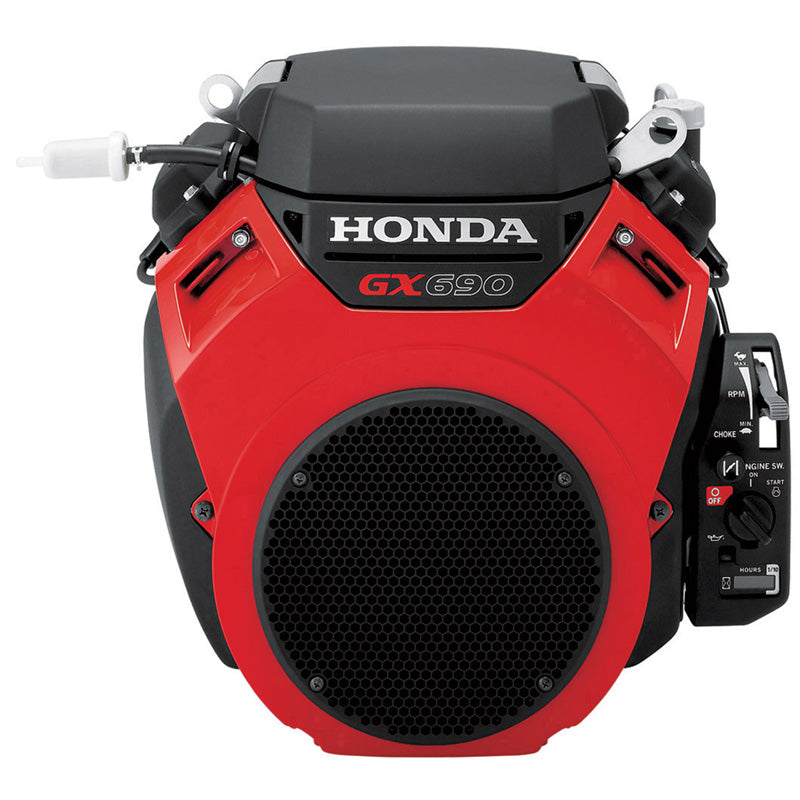

Honda GX690 with 26Amp Charging system

GX690RHTAPP

$2,146.50 USD
$2,146.50 USD $2,146.50 USD
Sale Sold out
Shipping calculated at checkout.

23 in stock

Honda GX690 TAPP Horizontal V-Twin OHV Engine with Electric Start, 1-1/8" x 3.78" Crankshaft, 688cc, 22.1 Net HP, 26 Amp Alternator

NOTE

Requires Fuse Holder w/ 40A ATC Fuse in order to start motor.

Engine Information
Brand
Honda
Model Number
GX690RHTAPP
Internal ID
HDA-GX690-TAPP
Warranty
3 Year Residential | 3 Year Commercial
Available to California
Not Available to Ship to California
What's in the Box
Includes engine, owner's manual, regulator, sub-wire harness and exhaust gaskets.
Dimensions
Weight
110.0 lb
Power
Displacement
688cc
Power Output
22.1 HP @ 3600 RPM
Torque
35.6 lb-ft (48.3 Nm) @ 2500 rpm
Crankshaft
Orientation
Horizontal
Type
Straight
Diameter
1-1/8"
Length
3.78"
Dimensions
1-1/8" x 3.78"
End Tapped Size
7/16"-20
Keyway
1/4"
Rotation Direction
Counter-Clockwise
Other Engine Specifications
Starter Type
Electric
Ignition System
Digital CDI with Variable Ignition Timing
Carburetor
Horizontal Two-Barrel Butterfly Valve with Internal Vent
Number of Cylinders
Two
Air Cleaner
Dual Element
Oil Capacity
2.1 qt
Low Oil Alert
yes
Low Oil Shutdown
no
Fuel
Unleaded 86 Octane or Higher
Fuel Tank Capacity
N/A
Fuel Pump
Diaphram
Governor System
Mechanical
Lubrication System
Forced
Bolt Circle
5", 6-1/2", 7-3/4"
Bore x Stroke
78mm x 72mm
Compression Ratio
9.3 : 1
Charging System
26 Amp Alternator
Features
🞽
Fuel economy is similar to fuel injection, with the simplicity of carburetion
🞽
Digital CDI ignition system with variable timing
🞽
Includes a rev limiter to protect against damage from over-revving
🞽
Two barrel inner-vent carburetor for more precise fuel metering
🞽
Hemispherical combustion chamber delivers rapid combustion
🞽
Aluminum push rods with steel tips - lighter weight, lower vibration, and quieter operation
🞽
High capacity pump facilitates consistent oil delivery
