• Oversized roller bearings
• Fully anodized crankcase
• Innovative new seal design extends seal life
• New plunger design improves thermal
shock resistance
• New valve cap improves hydrostatic performance
FEATURES

SPECIFICATIONS

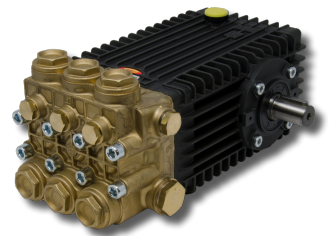

Pump Model TSF2821
Maximum Volume 14.5 GPM
Maximum Discharge Pressure 2500 PSI
Horsepower 24.8 EBHP
Maximum Pump Speed 1450 RPM
Inlet Pressure Flooded to 70 PSI
Plunger Bore (in / mm) 1.102 / 28 mm
Plunger Stroke (in / mm) .826 in / 21 mm
Oil Capacity 33.8 oz.
Maximum Fluid Temp 165° F
Inlet Port Thread 3/4"-14 BSP-F
Discharge Port Thread 3/8"-19 BSP-F
Shaft Diameter (in / mm) .945 in. / 24 mm
Weight 40.7 lbs / 18.5 kg
Dimensions 14.94" x 9.78" x 6.99"
