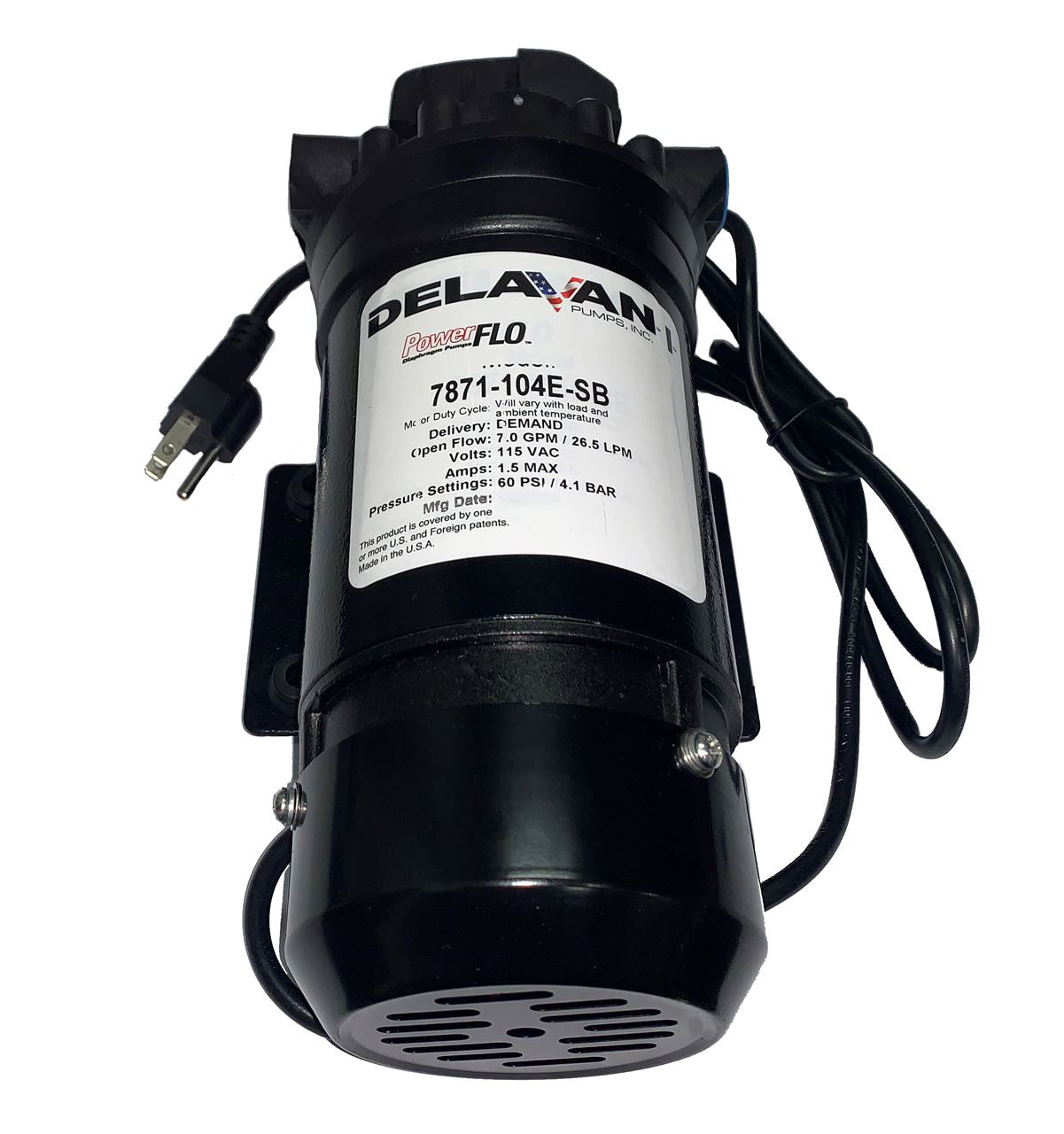

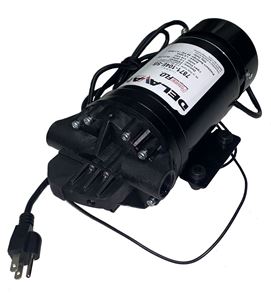

Delavan 7871-104E-SB PowerFLO™ Advanced FB3 Series 115/120VAC 7.0 GPM 60 PSI Diaphragm Pump with 1/2” FNPT Ports. Demand Switch – Operates only when liquid flow is required.

Features:
• FB3 pumps are Delavan’s new advanced 115/120VAC smooth running, five chamber diaphragm pumps that features Extended Pump Life and Improved Performance
• The FB3 is the most advanced, high flow 115/120VAC pump on the market, built with quality components, such as stainless fasteners, and high torque motors standard
• The new diaphragm retaining system allows the pump to maintain its flow for longer hours of operation in demanding applications
• The FB3 pumps feature Santoprene diaphragms and valves, to handle the FB3 pumps’ higher flow rates
• The FB3 pump uses a heavy duty demand switch system that extends the life of the pump by turning it off when not in use
• Like all Delavan diaphragm pumps, this heavy duty pump can run dry and will self-prime
• Made in the USA
• 100% Factory tested
• 2 Year warranty from date of purchase

Motor:
• Type: 115/120VAC Totally enclosed, non-ventilated
• Leads: 6’ Power cord with plug
• Amps: 1.5 Max

Materials of Construction:
• Motor Shell: Coated Steel
• Housing: Polypropylene
• Valves: Santoprene
• Diaphragm: Santoprene/Stainless Steel
• Fasteners: Stainless Steel

Pump:
• Demand Switch – Operates only when liquid flow is required
• Type: 5-chamber positive displacement
• Capable of being run dry
• Excellent self-priming capability
• Liquid Temperature: 140° F Max.
• Priming Capabilities: 14’
• Max. Flow: 7.0 GPM
• Pressure Shut-Off: 60 PSI
• Inlet/Outlet Ports: 1/2” FNPT
• Packaging: Small box
• Weight: 10.15 lbs
