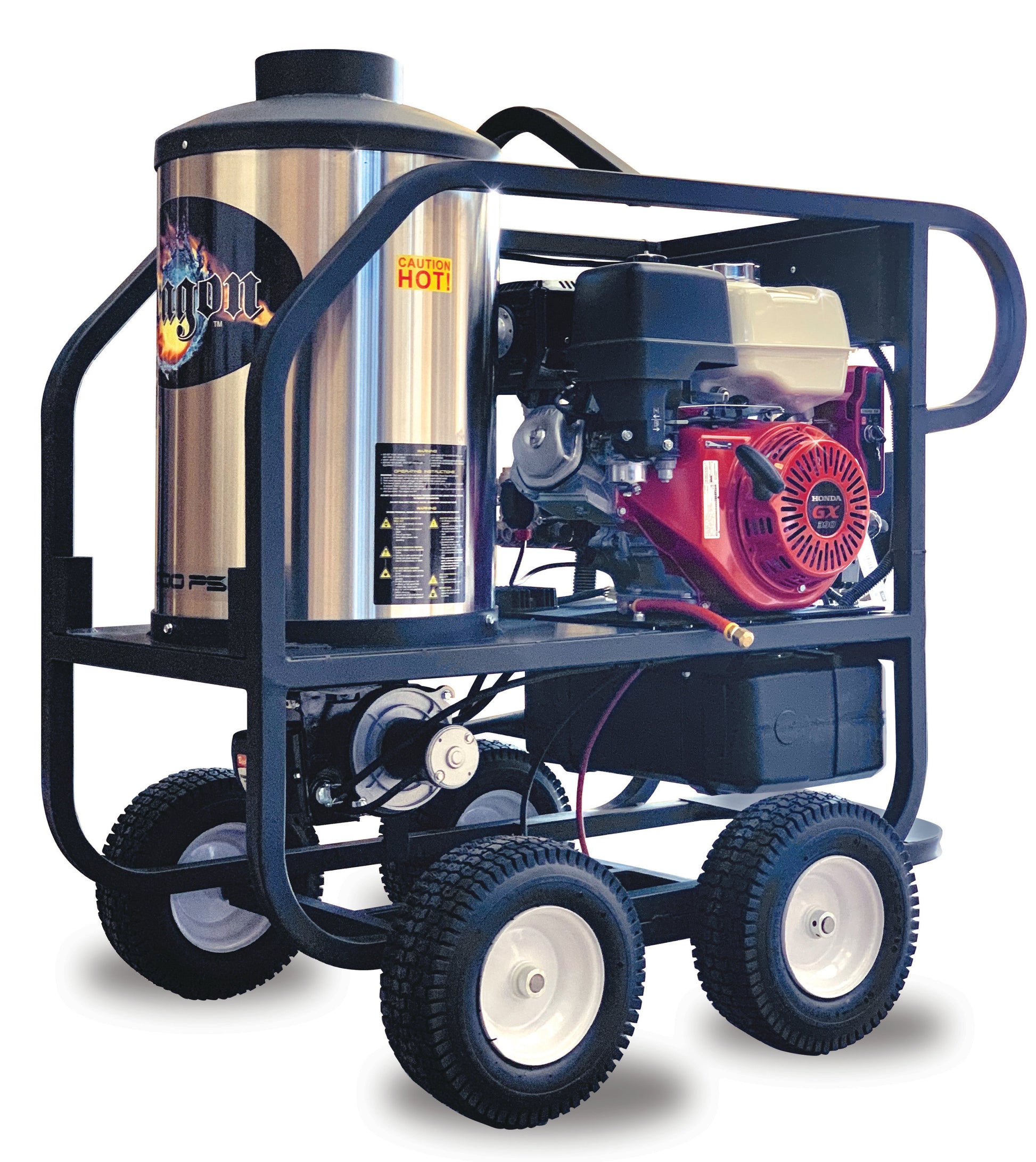

Dragon 4GPM at 4000PSI Hot Water Mobile Skid/Roller

D-H4040 Dragon Hot Water

Dragon Series Hot Water Pressure Washers

FEATURES

• Electric start Honda Engines or Baldor electric motors

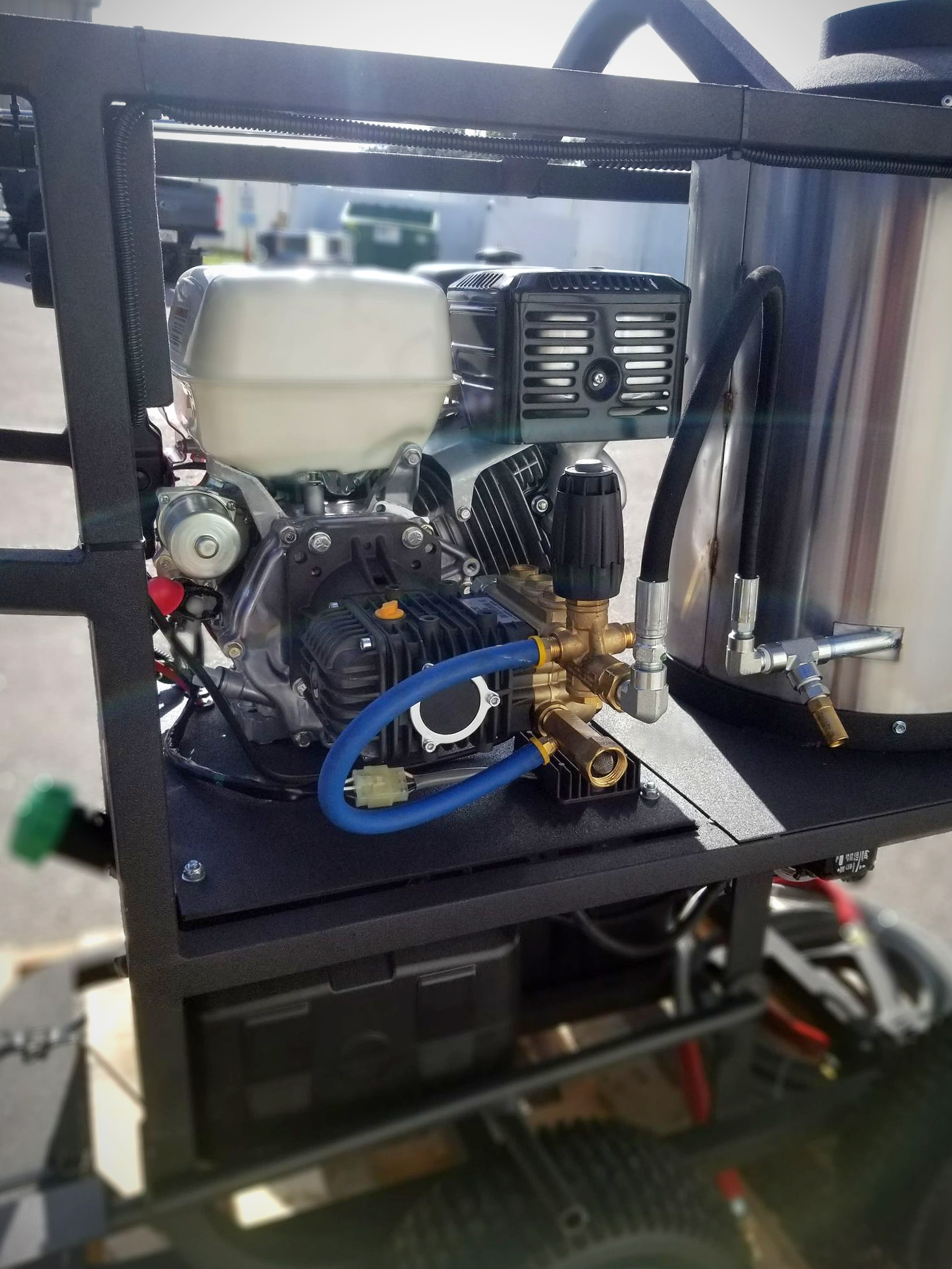

• Industrial Comet triplex pump with external unloader and bypass
• Rugged roll cage design with lifting hook – protects all unit components
• Adjustable pressure
• Oversized turf tires
• Over pressure and thermal relief protection
• Top-to-bottom schedule 80 for maximum temperature rise
• Stainless steel control panel with adjustable temperature control
• Corrosion resistant stainless steel coil wrap
• 6 gallon aluminum diesel/kerosene fuel tank
• Easy engine oil drain system
• 3/4 cold rolled steel axle

Standard accessory kit 6550 includes 50™ steel braided non-marking gray hose, 36†insulated spray wand with molded grip and gun, 5 quick connect spray nozzles, and a high draw chemical injector. Other kit options are available. See your PSI dealer for details.PSI pressure washers feature Comet pumps for their unmatched quality and life.

PUMP FEATURES

• Forged brass manifold with lifetime warranty
• Forged bronze connecting rods
• High efficiency, stainless steel check valves
• Abrasion proof, heat resistant, solid ceramic plungers
• High quality oversized bearings
• Increased fin depth for maximum heat dissipation
•

SPECIFICATIONS

MODEL D-H4040HC

PSI  4000

GPM 4.0

TIRES 13"

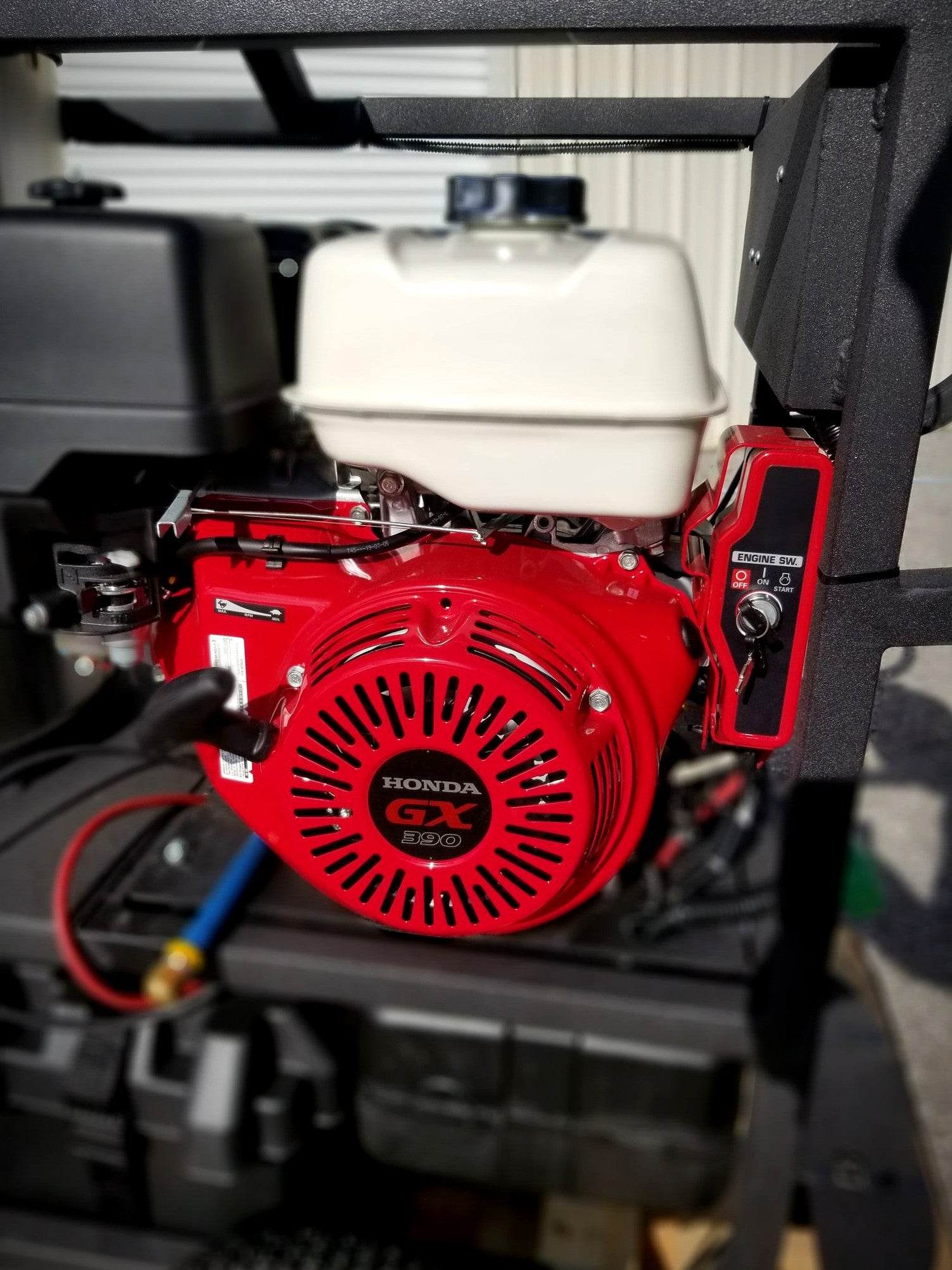

ENGINE/MOTOR Honda GX390

PUMPZWD40404

DIMENSIONS 5" x 32" x 47"

UNIT WT. 500 lbs.
