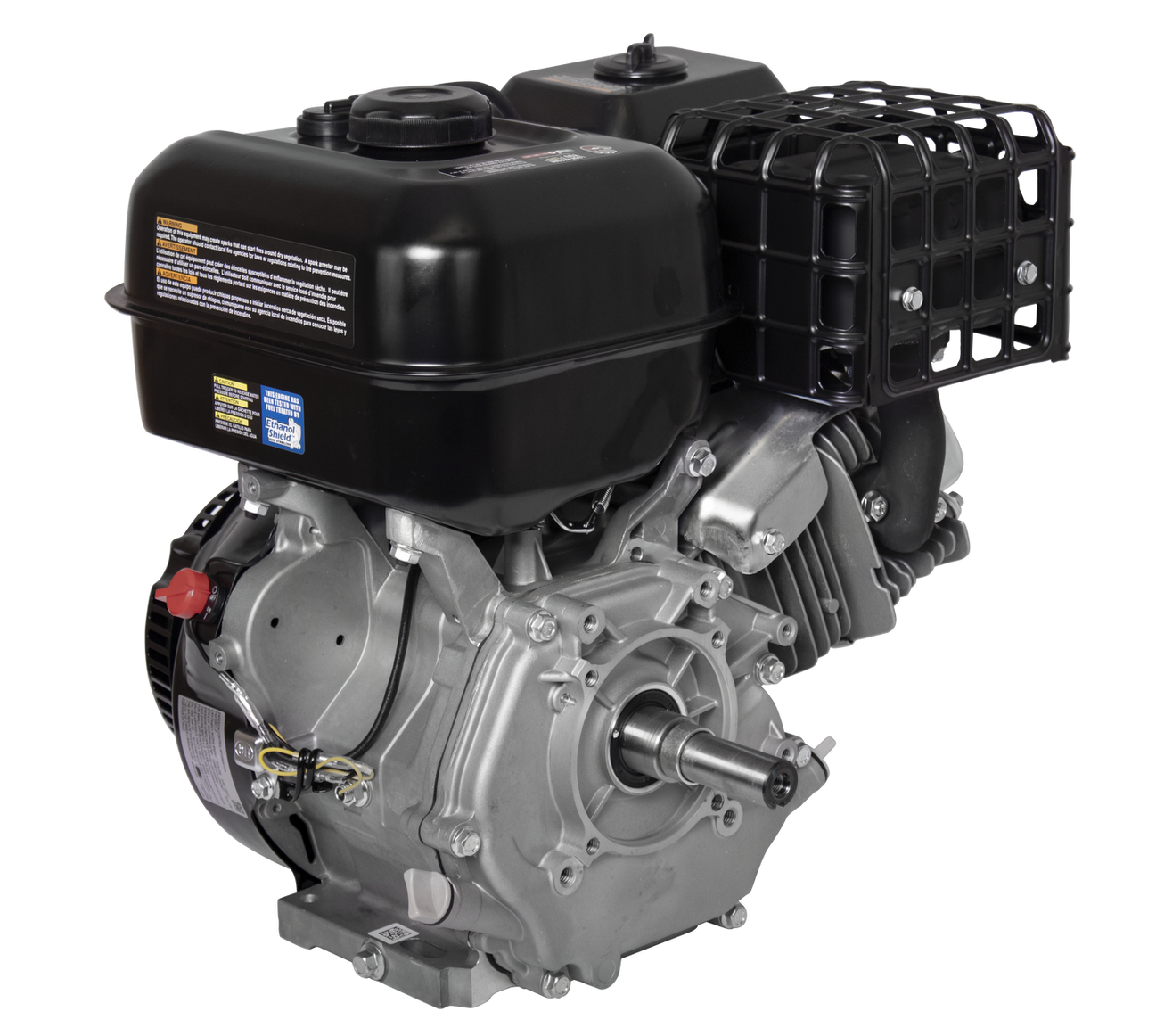

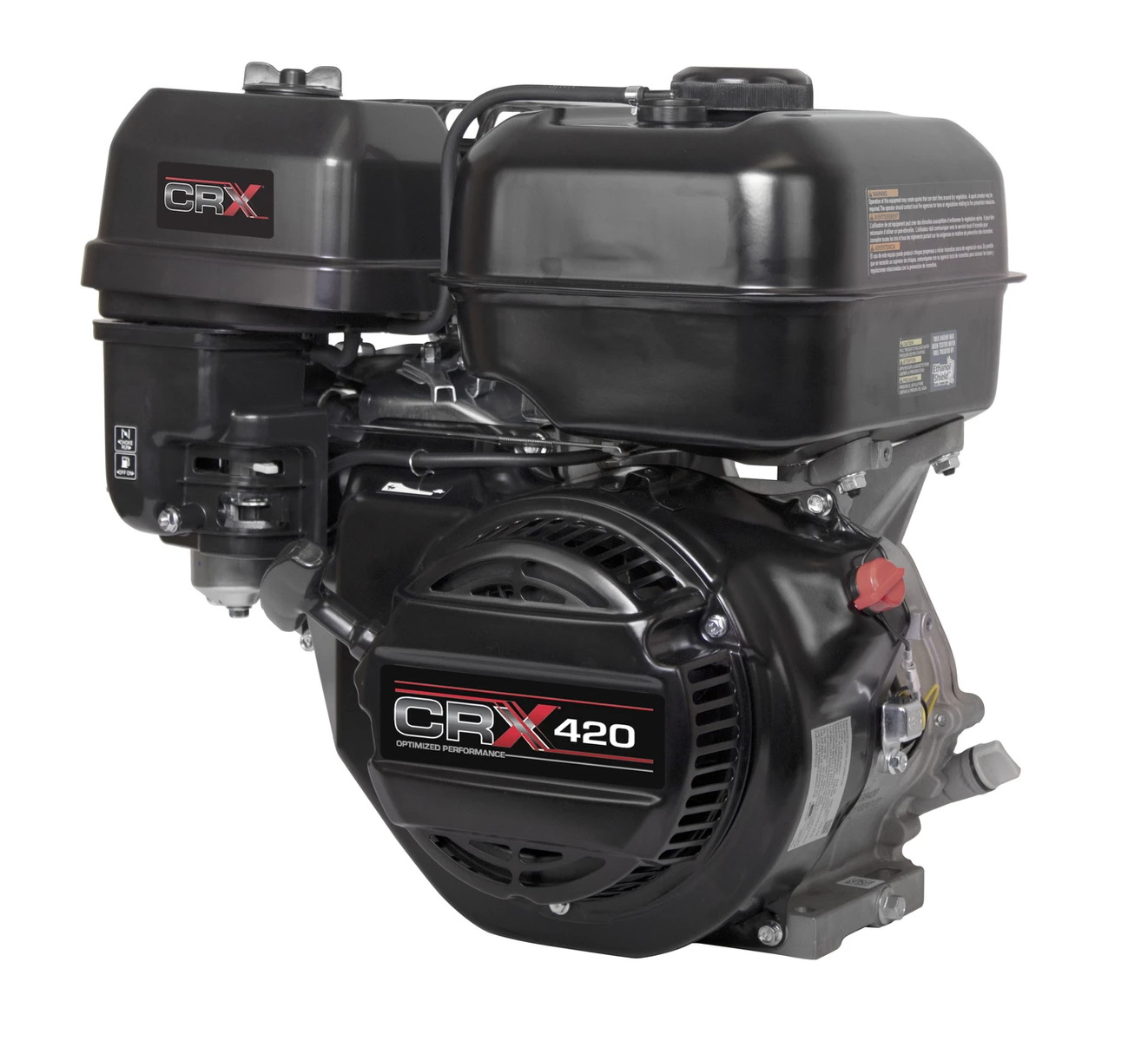

CRX420 Engine 1" Shaft Pull Start 420cc
SKU:CRX420 10005
Couldn't load pickup availability
21 in stock
CRX420
420CC CRX Engine with 1in Shaft
Pull Start
Specs:
- Engine Type Air-Cooled,
- Single Cylinder,
- OHV Bore x Stroke 3.54" x 2.60" (90 x 66 mm)
- Displacement 25.63 cu in (420cc)
- Compression Ratio 8.3:1
- Net Power 9.0 kW @ 3600 rpm
- Net Torque 27 Nm @ 2800
- PTO Shaft Rotation Counterclockwise
- Ignition System Transistor Magneto Adjustable Throttle
- Exhaust Emissions 50 State
- PTO Shaft Dimensions 1" (25.4 mm)
- PTO Flange SAE J609 Flange B
- Engine Dry Weight 67 lbs
- Dimensions 17.25” x 16” x 17.9”
- Warranty 3yr Commercial
FEATURES:
-
Industrial tough mufflers and shields designed for improved sound quality and lower sound level
-
Commercial-style dual element air filtration system helps maintain optimal power on dusty work sites
-
Choke and fuel shut-off valve with integral fuel filter housing closely located for convenience and easy maintenance
-
Cast iron cylinder decreases friction between mating parts as well as which helps keep the engine cool during extreme applications
-
Heavy-duty steel, powder-coated fuel tank
-
Precision-machined, forged iron crankshaft with heavy-duty steel ball bearings designed for low vibration and toughness required for the most extreme duty cycles
-
Low oil auto-shutdown sensor prevents damage to the engine when oil volume is low
-
Heavy-duty steel blower housing designed to protect vital components from impact under the toughest conditions
