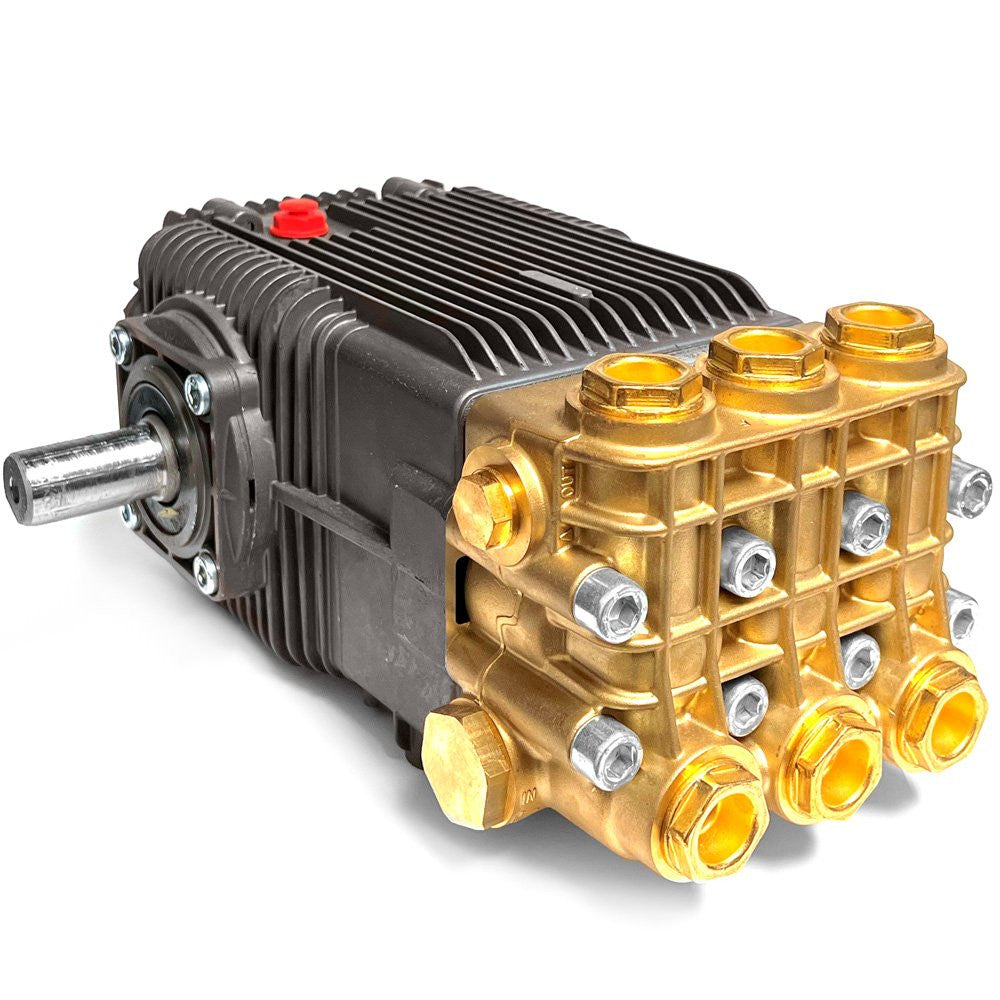

AR 8 GPM @ 3500 Psi 1750 RPM XWAM8G35N

The AR North America XWAM8G35N plunger pump is useful for a variety of different high-pressure washing applications. Its die-cast design, forged brass head, and durable inner components make it an excellent choice for industrial and commercial use.

Part of the XWAM Series of pumps, the XWAM8G35N model has a max flow rate of 8 gpm and a max pressure of 3500 PSI. This quality plunger pump has a 3/4" female inlet, a 3/8" female outlet, and a 32 oz. oil capacity.

Specifications:

• 8 GPM maximum flow rate
• 3500 PSI maximum pressure
• 1750 RPM
• 20mm bore diameter
• 19.8mm stroke
• 3/4" female inlet
• 3/8" female outlet
• 140° Fahrenheit maximum temperature
• 32 oz. oil capacity
• 24mm solid shaft
• Crankshaft ID Stamp: 1

Features:

• Forged brass manifold
• Machined brass valves
• Specially designed Ultra-Form cages
• High-pressure "V" packing style Buna-N seals
• Low-pressure "U" Buna-N seals
• Oversized taper roll bearings
• Precision die-cast bearing support, crankcase, and rear covers
• Stainless steel plunger rods
• Oversized precision ground and hardened steel rod pins
• One-piece connecting rods
• Forged, precision-ground crankshaft
• Triple lip oil seals and o-rings
