Specifications

Motor Type: 12 VDC permanent magnet, totally enclosed, non-ventilated

Leads: 14 AWG, 6 Long

Duty Cycle: See Heat Rise graph

Temperature Limits: Motor is not equipped with thermal protection. For user safety, optimal performance, and maximum motor life, the motor surface temperature should not exceed 180°F (82°C).

Materials of Construction

Housings: Polypropylene

Valves: Viton

Diaphragm: Santoprene

Fasteners: Stainless Steel

Motor Shell: Coated Steel

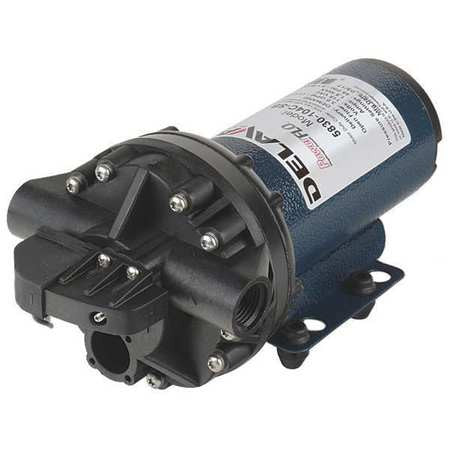

Pump

Type: 5 chamber positive displacement diaphragm pump, self priming, capable of being run dry, demand or bypass mode

Certifications: CE Approval

Liquid Temperature:140°F (60°C) Max.

Priming Capabilities: 14 feet (4 m)

Max Pressure: 60 PSI (4.2 bar)

Inlet/Outlet Ports: 1„2 FNPT or 3/4 Quick Attach

Weight: 8 lbs. (All 5800/5900 Models)
