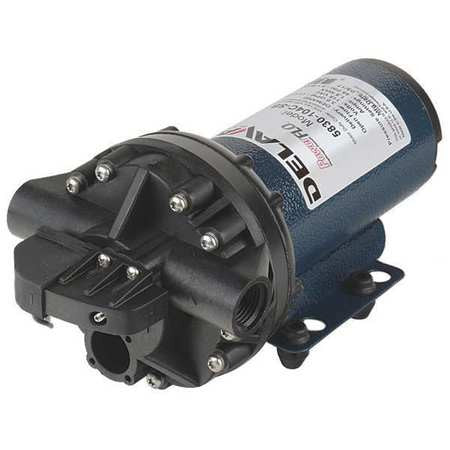

Delavan 3.0 GPM Pump 5830-201E
SKU:5830-201E
Couldn't load pickup availability
Low stock: 5 left
Delavan 3.0 GPM Pump 5830-201E
Specifications
Motor Type: 12 VDC permanent magnet, totally enclosed, non-ventilated
Leads: 14 AWG, 6" Long
Duty Cycle: See Heat Rise graph
Temperature Limits: Motor is not equipped with thermal protection. For user safety, optimal performance, and maximum motor life, the motor surface temperature should not exceed 180°F (82°C).
Materials of Construction
Housings: Polypropylene
Valves:Viton
Diaphragm: Santoprene
Fasteners: Stainless Steel
Motor Shell: Coated Steel
Pump
Type: 5 chamber positive displacement diaphragm pump, self priming, capable of being run dry, demand or bypass mode
Certifications: CE Approval
Liquid Temperature:140°F (60°C) Max.
Priming Capabilities: 14 feet (4 m)
Max Pressure: 60 PSI (4.2 bar)
Inlet/Outlet Ports: 1/2 FNPT or 3/4 Quick Attach
Weight: 8 lbs. (All 5800/5900 Models)
![Delavan 3.0 GPM Pump 5830-201E Delavan 3.0 GPM Pump 5830-201E](http://mpwsr.com/cdn/shop/files/file_4355f3e2-71e4-4da5-8c86-1a1cd61c74aa_300x.jpg?v=1714669156)
Delavan 3.0 GPM Pump 5830-201E
