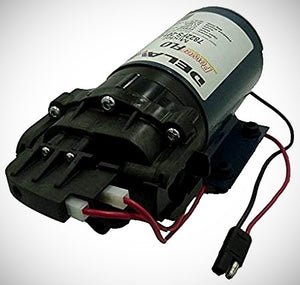

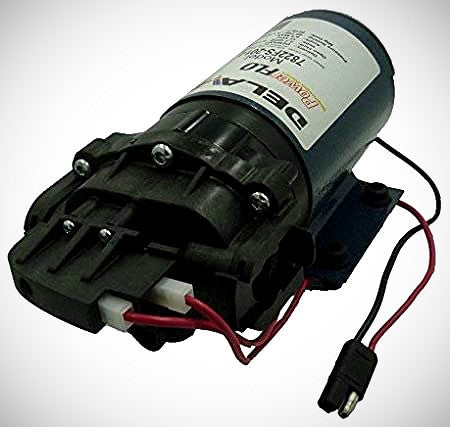

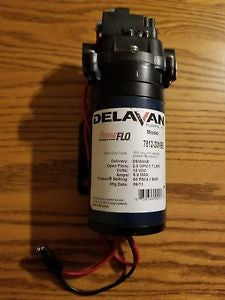

Delavan Power Flo 2GPM 12v Pump

Specifications

Motor Type: 12 VDC permanent magnet, totally enclosed, non-ventilated

Leads: 14 AWG, 12 long

Duty Cycle:See Heat Rise graph

Temperature Limits:Motor is not equipped with thermal protection. For user safety, optimal performance, and maximum motor life, the motor surface temperature should not exceed 150°F (66°C). (See Heat Rise graph)

7812-201-BBI

Materials of Construction

Housings: Polypropylene

Valves: Viton

Diaphragm: Santoprene

Fasteners: Stainless Steel

Motor Shell: Coated Steel

Pump

Type: 3 chamber positive displacement diaphragm pump, self priming, capable of being run dry, demand or bypass models available.

Certifications:CE Approval

Liquid Temperature: 140°F (60°C) Max.

Priming Capabilities: 14 feet (4 m)

Max Pressure: 60 PSI (4.4 bar)

Inlet/Outlet Ports: 3„8 FNPT or 5/8 Quick Attach

Weight: 6 lbs (2.7 kg

Power Connection

Lead Wires,

Two Pin Molded Plug,

115V Power Cord (not avail. for all models)

Switch Options

In-Line On/Off
